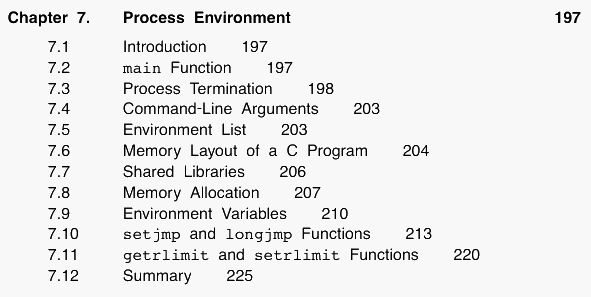

I’ve read the 7th chapter of the Advanced Programming in the UNIX Environment book:

apue-ch7

There is also an excellent course by Jan Schaumann, with youtube videos, examples, and exercises. I think it’s a good book and a good course, so I decided to go over it and maybe record some videos for youtube talking about it. Even though it’s interesting, it can be dry at times, and going over examples provided by somebody else can be less engaging than coming up with them on your own. However, I find that running them on different platforms makes it more inherently interesting. UPD: At least initially, after a while I realize that it’s a lot more work than I expected and lose interest. But not for long. I guess it’s a marathon, rather than a sprint.

Imagine you have a code snippet that does something simple, the result of which is obvious if you run it. However, can you run the same snippet on OpenBSD? Does it require modification? Is the result any different there? What about glibc vs musl? x86 vs ARM? Linux vs Windows? The last one can be especially challenging, because it’s a completely different OS.

The book uses C for examples, but there are other systems programming languages. Of note, at least to me, are Odin and Go. I think I can learn a lot by adapting the examples for these languages, because it can highlight some key design decisions. At present, there are no books like Advanced Programming in the UNIX Environment (Rust edition). There are good books on Rust and Odin, but none that cover the core platform API.

apue-odin

For this blog post I’ve organized my notes as a series of questions and answers. I think a question can be good even if it is phrased in a way that reveals fundamental misunderstanding of something. For example, for a long time I used to think that environment variables are implemented as a hashmap. I didn’t care to look inside and this mental model isn’t terribly wrong, but still it’s good to learn and see how they actually work.

Table of Contents

main parameters

In C we start our programs with main. It can be declared like:

  int main(void)
  int main(int argc, char **argv)
  int main(int argc, char **argv, char **env)

So does this mean that it’s variadic? Is this function overloading?

No, it’s declared as main() in libc. When you omit parameters, the C compiler omits type checking for them. So this is legal:

int add()
{
    return 0;
}

int main(void)
{
    int res = add(1, 3);
    return res;
}

The arguments are still passed to add, as can be seen from the disassembly:

 ┌ 44: int main (int argc, char **argv, char **envp);
 │ afv: vars(2:sp[0xc..0x10])
 │           push rbp
 │           mov rbp, rsp
 │           sub rsp, 0x10
 │           mov dword [var_4h], 0
+│           mov edi, 1
+│           mov esi, 3
 │           mov al, 0
 │           call sym.add
 │           mov dword [var_8h], eax
 │           mov eax, dword [var_8h]
 │           add rsp, 0x10
 │           pop rbp
 └           ret

Return type of main

We can int main, void main, and even just main. Why do the last two even work?

Simply main without a type doesn’t work for newer standards of C, but compiles with --std=c89. The reason why is because in the past, any procedure without a return type defaulted to int. This behavior is still present with implicitly defined procedures from libc, when you forget to include the header.

void main works because we don’t have to return from main. I’m not sure how it passes the type check though, but somehow it does. It is not standard.

Implicit return

Does C have implicit return? For example:

  int main(void)
  {
      printf("implicit\n");
  }

Only for main, and it is 0, according to the standard. It used to be undefined behavior and in practice returned the value of the last statement, but not anymore.

exit vs return

Within main, is exit(0) somehow different from return 0?

Not really, because libc does something to the effect of

exit(return(argc, argv, envp))

By the way check out that source code browser, huh! Especially for big codebases like Linux, it beat browing via github.

exit status codes

Is there any standard for the meaning of exit codes? For example there is EXIT_SUCCESS and EXIT_FAILURE.

BSD standard defines some status codes, you can read about them with man sysexits.h. But really the most important thing is that 0 is success and everything else is some kind of failure. This is true even for Windows. Also, even though exit expects an int as an argument, only the last byte counts:

status & 0xFF

This happens within the system call itself, not the wrapper or POSIX exit.

Randomly I remember the author of Crafting Interpreters mentioning that BSD’s sysexit was the closest thing to a standard he could find. So he exits with 64 status code when the command line program prints the usage message.

Observe the exit status code

How to observe the exit status code?

In case it’s not automatically displayed by your shell prompt or GUI (think debugger), you can call:

~> ./prog
~> echo $?
42

In case you use the fish shell, call echo $status. On Windows in Powershell call echo $LASTEXITCODE. In cmd call echo %errorlevel%.

By the way, did you know that Powershell is cross-platform? Imagine replacing bash with it on Linux. What? Never say never! Maybe it’s time for you to change your shell?

exit vs _exit vs _Exit vs abort

What’s the difference between all these?

exit is defined by libc and performs libc-aware cleanup before terminating the process. For example, it flushes stdio buffers and executes exit-hooks registered with atexit. It then calls _exit, which is the actual system call. Keep in mind that system calls have wrappers in libc, so technically _exit procedure is also “defined by libc”.

_exit and _Exit are the same, it’s that they’re coming from different standardization efforts. _exit is defined by POSIX, while _Exit by the C standard.

Here’s a quick example to demonstrate the difference:

void hook_1(void)
{
    printf("%s\n", __FUNCTION__); // __FUNCTION__ would be "hook_1"
}

void hook_2(void)
{
    printf("%s\n", __FUNCTION__);
}

int main(void)
{
    atexit(hook_1);
    atexit(hook_2);
    exit(0); // try _exit(0) to compare
}

~> ./a.out
hook_2
hook_1

abort is an abnormal way to exit a program. It can be triggered by calling abort(), but there is also SIGABRT. It is the same signal mechanism underneath. You can send it manually with kill -6 <pid>. List other signals with kill -l. Aborting doesn’t execute the termination hooks, but there are signal handlers that can be registered, and they might execute if present.

atexit vs on_exit

Any difference between atexit and on_exit?

on_exit registers a callback that takes an argument:

void cleanup(int status, void *data)
{
    printf("Exit status %d, data: %s\n", status, (char*)data);
}

int main(void)
{
    on_exit(cleanup, "custom data");  // glibc-only
    return 0;
}

It is also available only on glibc (as far as I know). atexit is standard.

More startup and exit callbacks

If there is atexit, is there something like init in Go?

Yes, in fact it turns out a C program is quite an onion, with several layers of callbacks. I’ve learned about it from the article that was linked as additional reading on the course page. As I say, the course is really great! One note about the article though, it’s for x86 (32-bit) and glibc, so it’s pretty old. Here’s an example with all callbacks:

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>

void preinit(int argc, char **argv, char **envp)
{
    printf("%s\n", __FUNCTION__);
}

void init(int argc, char **argv, char **envp)
{
    printf("%s\n", __FUNCTION__);
}

void fini(void)
{
    printf("%s\n", __FUNCTION__);
}

__attribute((section(".preinit_array"))) typeof(preinit) *__preinit = preinit;
__attribute((section(".init_array"))) typeof(init) *__init = init;
__attribute((section(".fini_array"))) typeof(fini) *__fini = fini;

void __attribute((constructor)) constructor(void)
{
    printf("%s\n", __FUNCTION__);
}

void __attribute((destructor)) destructor(void)
{
    printf("%s\n", __FUNCTION__);
}

void my_atexit(void)
{
    printf("%s\n", __FUNCTION__);
}

void my_atexit2(void)
{
    printf("%s\n", __FUNCTION__);
}

int main(void)
{
    atexit(my_atexit);
    atexit(my_atexit2);
    exit(0);
}

If linked with glibc it prints:

preinit
init
constructor
my_atexit2
my_atexit
destructor
fini

If linked with musl, the preinit hook is skipped, it doesn’t execute. There is no error, it’s just skipped.

What gets called before main?

libc startup code, which is written partly in C, partly in assembly, and is platform dependent. It also matters whether you compile into a dynamic or static binary.

The way to find out is to run an executable in a debugger and print a backtrace. For example with gdb on Alpine I get this:

gef➤  bt -past-main on
#0  0x00005555555552b4 in main ()
#1  0x00007ffff7f9a496 in libc_start_main_stage2 (main=0x5555555552b0 <main>, argc=0x1, argv=0x7fffffffe7c8)
    at src/env/__libc_start_main.c:95
#2  0x0000555555555076 in _start ()

Another way is to run readelf -h <binary> and look at the “Entry point address” and put a breakpoint there like this: b *0x401050. However, this is only for position-dependent binaries (-no-pie flag).

By convention _start is the entry point. In fact, if you want to write some code in assembly you’d start your program like this:

section .text
    global _start

_start:
    mov rax, 60
    xor rdi, rdi
    syscall        ; exit(0)

With musl it’s easy enough to find the two source files that construct the _start call for x86-64: crt/crt1.c and arch/x86_64/crt_arch.h. Then it executes the init callbacks, calls main, and exits, executing the rest of the registered callbacks.

argv null termination

If we have argc, we don’t need null-terminated argv. Why is it null-terminated?

argc is derived from argv. argv is self-contained and you can loop over every argument like this:

for (i = 0; argv[i] != 0; i++)

argv[argc] is always a null pointer. It’s possible that argv[0] might not necessarily be the program name. For example:

// asdf.c
#include <stdlib.h>
#include <unistd.h>

int main(void)
{
    char *argv[] = { "something-else", 0 };
    execve("./print_args", argv, 0);
    exit(0);
}

// print_args.c
#include <stdio.h>

int main(int argc, char **argv)
{
    printf("argc = %d\n", argc);
    for (int i = 0; i < argc; i++) {
        printf("argv[%d] = %s\n", i, argv[i]);
    }
    return 0;
}

~> ./asdf
argc = 1
argv[0] = something-else

So it says “something-else” is the program name, even though the binary’s name is print_args. It can also be omitted:

int main(void)
{
-   char *argv[] = { "something-else", 0 };
+   char *argv[] = { 0 };
    execve("./print_args", argv, 0);
    exit(0);
}

./asdf
argc = 1
argv[0] =

You could even do execve("./print_args", 0, 0), although I suspect that’s undefined behavior.

Does main(void) still receive the arguments?

Yes, they’re passed unconditionally. Just because there is no declaration in the signature, doesn’t mean they’re not passed it. You can access them directly via the registers, $rbx is argc and $rbp is argv. So you can print them from main(void), it’s just that you’ll need to use inline assembly and pass them to the printing functions according to the calling convention while making sure that the functions are linked in. It’s a bit too finicky for a quick example.

env null termination

Is the third argument char **env also a null-terminated array of strings? What about extern char **environ?

Yes, it is. environ is the same as env initially, but it’s managed by libc and it is undefined behavior to increment the pointer itself. So this is illegal and can crash your program on subsequent setenv:

while (environ != 0) {
    printf("*environ = %s\n", *environ);
    environ++;
}

Here’s an example to demonstrate their behavior. The important notes are:

  • env is on the stack, a local variable, while environ is a global and can be on the heap or in the .bss section, depending on the platform.
  • env[i] and environ[i] initially point at the same strings.
  • As you call setenv and unsetenv, they (env and environ, and their contents respectively) can diverge. Initially, both env and environ have a certain size as arrays of strings. After setenv, environ changes its size, while env stays the same.
  • The underlying strings are shared, they are never duplicated.
  • Some strings can be located in the .data area, some on the heap.

Is env a hashmap?

No, it’s iterated over every time you call getenv, so access is O(n). It contains strings like "LANG=C.UTF-8", they are not separated into key and value. So there is also a search for '=' to extract only the value part of the string. This search is actually pretty clever as it utilizes SIMD within a register, as can be seen in musl: getenv.c and strchrnul.c.

It all dependes on libc implementation of course. But in any case, env is not meant to be big, so access is not efficient, it is not a hashmap.

How to manipulate env?

Here’s several equivalent methods:

FOO=asdf BAR=qwerty ./prog
env FOO=asdf BAR=qwerty ./prog
rarun2 program=prog setenv=FOO=asdf setenv=BAR=qwerty

env is usually available by default, while rarun2 is a tool from radare2. You can also pass modified env to the exec family of functions.

setenv vs putenv

The obvious signature difference:

putenv("FOO=bar");
setenv("FOO", "bar", true); // true means overwrite

Note that putenv will not make a copy of "FOO=bar", while setenv will copy both "FOO" and "bar". This means that if "FOO=bar" is on the stack and the function returns, the pointer within environ (say environ[33]) will become invalid.

Memory layout difference between platforms

A C program compiles to a binary. There are a few binary formats, for example ELF on Unix-like systems, PE on Windows, and Mach-O on macOS. These files have different sections. When you execute a program it loads into memory with approximately the same sections, just filled in with data (addresses are resolved, variables are allocated, etc.).

When you declare variables in C, some of them might be allocated in different sections of memory. A stack, a heap, a .bss, a .data section. Here’s a nice example that demonstrates the variables and their addresses. I’ve run it on multiple platforms, here’s the results:

You can diff them, although all addresses are different. Nevertheless, it’s possible to see where each variable is located by how big or small the address is.

The biggest difference is of course between x86-64 and ARM64, because the programs are loaded at different addresses ( x86-64 at 0x564D1C12xxxx vs ARM64 at 0xAAAADC9Exxxx). Another difference is where environ is located before and after setenv.

Size of binary sections on different platforms

There’s the size utility that prints the size of some sections of a binary. Given this I run it on multiple platforms:

# x86-64 glibc
   text	   data	    bss	    dec	    hex	filename
   5858	    696	  40048	  46602	   b60a	memory-layout
# x86-64 musl
   text	   data	    bss	    dec	    hex	filename
   6287	    672	  40112	  47071	   b7df	memory-layout
# ARM64 glibc
   text	   data	    bss	    dec	    hex	filename
   6268	    736	  40040	  47044	   b7c4	memory-layout

Not that interesting, because it depends on compilation options and the compiler itself. This is clang everywhere.

Get extra information about a binary

There are many tools to do it, I prefer rabin2 from radare2, but if you don’t have anything installed and have a binary that’s been linked with glibc, chances are that this might work:

~> env LD_SHOW_AUXV=1 ./memory-layout
AT_SYSINFO_EHDR:      0xffffa58aa000
AT_MINSIGSTKSZ:       4720
AT_HWCAP:             119fff
AT_PAGESZ:            4096
AT_CLKTCK:            100
AT_PHDR:              0xaaaacae00040
AT_PHENT:             56
AT_PHNUM:             9
AT_BASE:              0xffffa586d000
AT_FLAGS:             0x0
AT_ENTRY:             0xaaaacae00a00
AT_UID:               1000
AT_EUID:              1000
AT_GID:               1000
AT_EGID:              1000
AT_SECURE:            0
AT_RANDOM:            0xffffdbe0a928
AT_HWCAP2:            0x0
AT_EXECFN:            ./memory-layout
AT_PLATFORM:          aarch64

I think that might be very convenient for a sanity check when you’re debugging something.

Get program arguments outside of main

Is there any way for a function that is called by main to examine the command-line arguments without (a) passing argc and argv as arguments from main to the function or (b) having main copy argc and argv into global variables?

On Linux it’s possible to parse the file /proc/self/cmdline, it contains null-terminated string arguments back-to-back:

> hexdump -C /proc/self/cmdline
00000000  68 65 78 64 75 6d 70 00  2d 43 00 2f 70 72 6f 63  |hexdump.-C./proc|
00000010  2f 73 65 6c 66 2f 63 6d  64 6c 69 6e 65 00        |/self/cmdline.|
0000001e

Curiously for hexdump alias hd we get duplication (on busybox):

> hd -C /proc/self/cmdline
00000000  68 64 00 2d 43 00 2f 70  72 6f 63 2f 73 65 6c 66  |hd.-C./proc/self|
00000000  68 64 00 2d 43 00 2f 70  72 6f 63 2f 73 65 6c 66  |hd.-C./proc/self|
00000010  2f 63 6d 64 6c 69 6e 65  00                       |/cmdline.|
00000010  2f 63 6d 64 6c 69 6e 65  00                       |/cmdline.|
0000001

In place of self can be pid of any running process.

C23 main

C23 introduced many features, relatively speaking, so main can look like this:

int main(int argc, char *argv[argc+1])

This means that array argv contains argc+1 elements, number of arguments plus the null terminator. You can also mark the parameters as unused:

int main([[maybe_unused]] int argc, [[maybe_unused]] char *argv[argc+1])

There is also this form:

int main(int argc, char *argv[static 1])

Which means that argv cannot be NULL.

&argv vs &argv[0]

Are these the same? If not, how are they different?

These are different because & evaluates to a new pointer. &argv[0] would be same as just argv though, without the “address-of”. So it doesn’t literally create a new pointer. These calls all evaluate to the same address:

&argv[0]; // 0x7ffc69bb0530
&argv[0]; // 0x7ffc69bb0530
&argv[0]; // 0x7ffc69bb0530

Are argc and argv on the stack or in the registers?

On x86-64 Linux they are in the registers, according to the System V AMD64 ABI, but might spill to the stack if you &argv for example.

How to read the .bss and .data sections?

Here’s how to do it with some tools:

readelf -S ./a.out         # to show the section numbers
readelf -x 19 ./a.out      # read .bss section (assuming it's 19)
objdump -D -j .bss ./a.out # disassemble .bss
r2 -A ./a.out
  iS
  px @ .data

How to define a custom entry point?

With the -e compiler flag:

clang -e custom_entry src.c

Although libc still expects you to define main. If you’re doing something like this, likely you want to avoid linking to libc, so you might actually do something like this:

// clang -nostdlib -fno-buildin src.c
__attribute((force_align_arg_pointer))
void _start(void)
{
   // ...

Or if you don’t like _start:

// clang -e custom_entry -nostdlib -fno-buildin src.c
__attribute((force_align_arg_pointer))
void custom_entry(void)
{
   // ...

But this will lead to some difficulties, like hallucinated libc function calls, missing stack protector, etc.

What happens if a program doesn’t exit?

It will crash because rip will just keep going, and stumble upon illegal instruction.

I think that’s it for today. The chapter is big, and there are a lot of details in the example outputs. I mentioned Odin and Go, but there’s no way I’m translating these snippets anytime soon (the ones from the book and the course). I guess, after you see the structure of a C program, it’s not that interesting to inspect the structure of an Odin program, because it’s approximately the same. Still, I think there might be a lot of value in a book like apue but for Odin.
